HSQ-3500 Cantry Cutter 【Block Squaring Cutter】

Model	3500	1600(Dressing)
Blade max.diameter	3500mm	1600mm
Num.of blades	6(3×Φ1600+3×Φ940)/ (Φ2200More monolithic)p	1 p
Lifting stroke	2000mm	3000mm
Transverse cutting travel	4200mm	4200mm
Max.cutting size(LxWxH)	4000×2500 ×2000mm	4000×2500 ×2500mm
Sprindle drive motor	37KW	37-55KW
Gross weight	13500kg	14500kg

HSQ-3500 Cantry Cutter 【Block Squaring Cutter】
    Built in total cast iron with giant blade for extra cutting depth.a robust machine built on two columns that support and guide the vertical cutting unit movement along the cast iron bridge.Vertical movement on two precision screws with two worm screws.Plus the machines is formed with steel worktable along with running path.Max.diameter of fixed blade can be 3500mm(single blade only).also can be with numbers of smallerdisc combination.This machine is available for cutting and edging large scale Marble & Granite Block

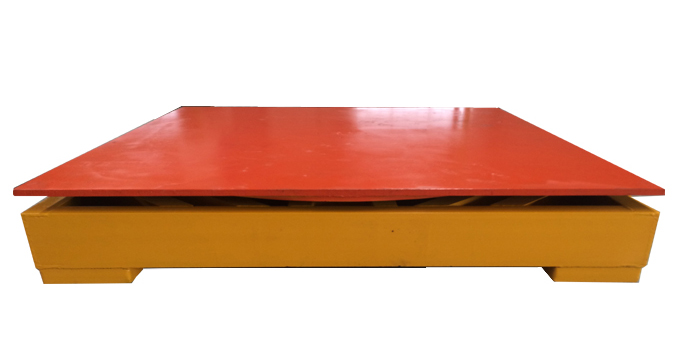

Standard Worktable(Max. load:35T)

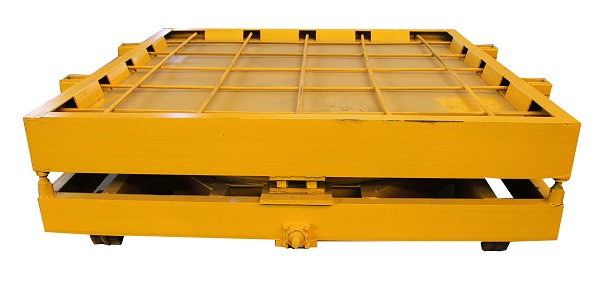

Rotatable worktable by electric(Optional for dressing the block;Max. load:10T)

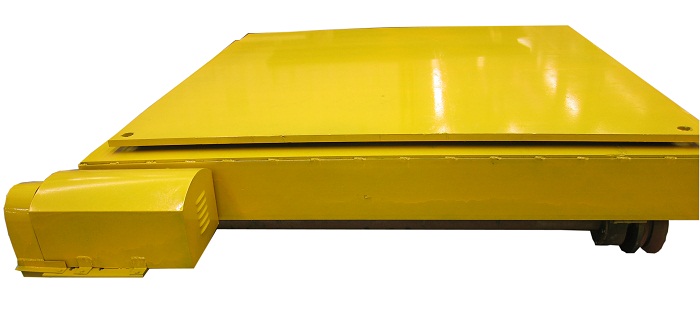

Rotatable worktable by electric(Optional for dressing the block;Max. load:35T)
