HSQ-1200/1600 Bridge Type Edge Cutting Machine【 Bridge Cutter;Bridge Cutting Machine;Bridge Saw 】
|

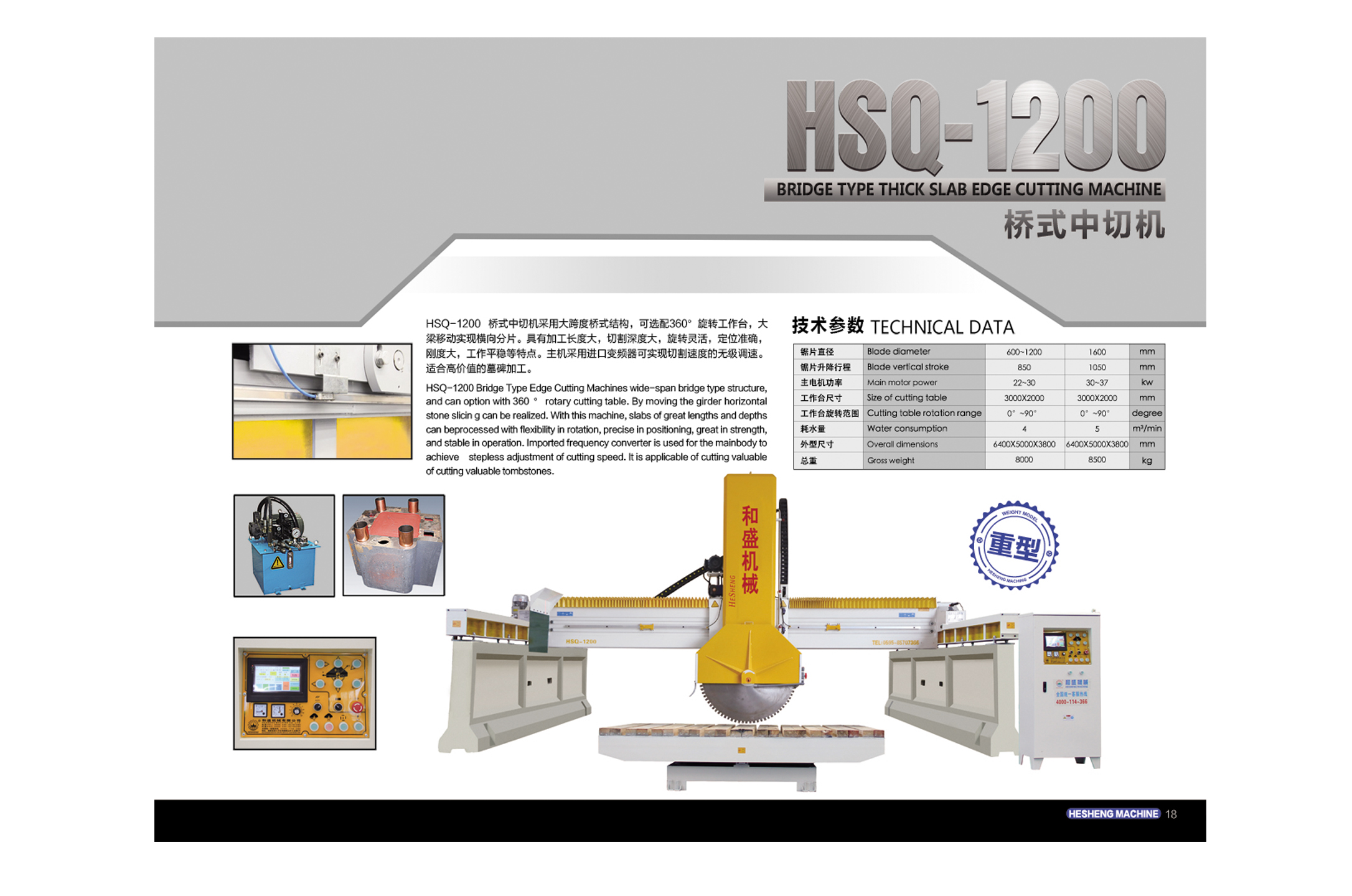

Model?
|
HSQ-1200
|
HSQ-1600??????
|
|
Max.Blade diameter
|
?1200mm
|
?1600mm
|
|
Blade vertical stroke
|
850mm
|
1050mm
|
|
Main motor power
|
22KW
|
30（37）kw
|
|
Size of cutting table
|
3000×2000 mm???????????????
|
?3000×2000 mm??
|
|
Cutting table rotation range????
|
0°，90°?（Optional）
|
0°，90°?（Optional）
|
|
Water consumption
|
4 m3/h
|
5 m3/h
|
|
Overall dimensions
|
6400X5000X3800mm
|
6400X5000X3800mm
|
|
Weight
|
5T?????
|
5.8T
|
HSQ-1200/1600 Bridge Type Edge Cutting Machine【 Bridge Cutter;Bridge Cutting Machine;Bridge Saw 】

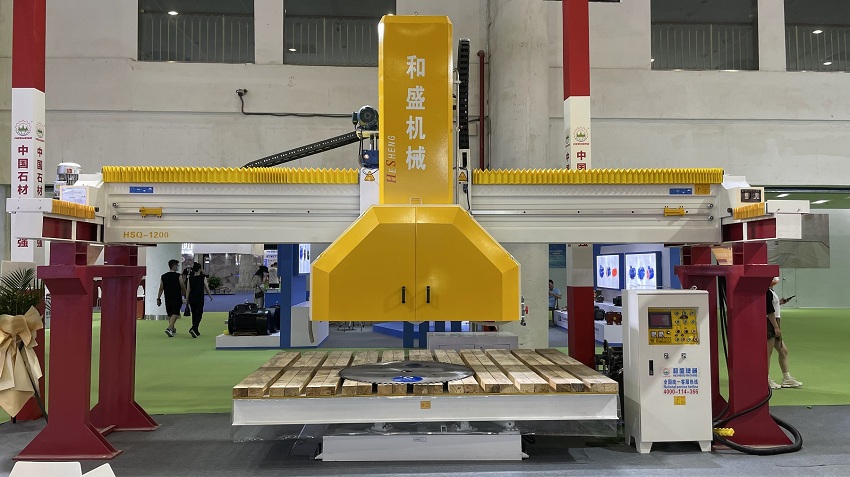

??? The beam of this machine（HSQ-1200/1600) is made of steel, which has high strength and is not easy to break.

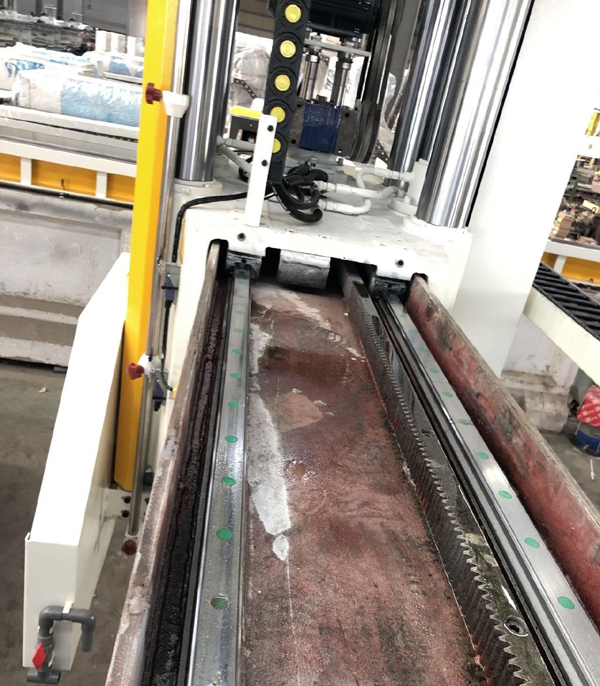

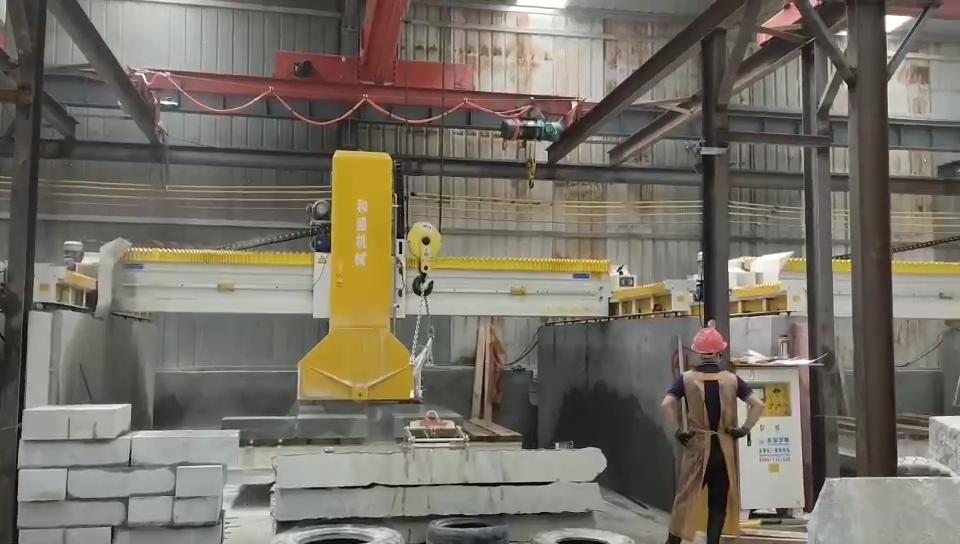

With heavy-weight struction,steady cutting,deep feeding to make machine have high-production.High precision linear rail is used for cross-beam movement. With hydraulic??lifting structure? adopts large diameter four guide column (diameter 120mm). Equipped with? hydraulic-pushing structure for?rotary worktable.Crossbeam moving make machine to have transverse splicing.This machine have a lot of good point when our cutomer use this machine to process slabs：It has the advantages of long processing length, large cutting depth, flexible rotation, accurate positioning, large rigidity and smooth operation.Main structure equipped with imported-invertor to have adjustable cutting speed. It is suitable for big-quatity kerbstones and?high-valuable tombstones.
1：Up/Down sliding ways are made up of chrome-plated round steel to minimze cutting clearance and trembling,and to endure the using life of machine.
?
?
2：With heavy-weight struction,steady cutting,deep feeding to make machine have high-production.High precision linear rail is used for cross-beam movement .?

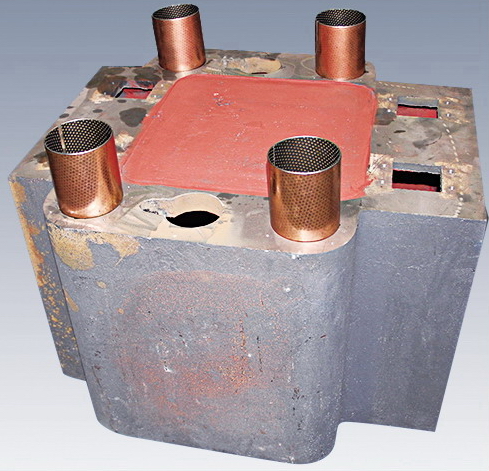

3:A guiding polymer materials (Teflon, Brand Dupont) was used on the contact surface between up/down column and seat . Such guiding material is rolling into a circular storage pits, in less oil or oil under the conditions of space off to work with a low coefficient of friction, wear resistance and long service life, etc..

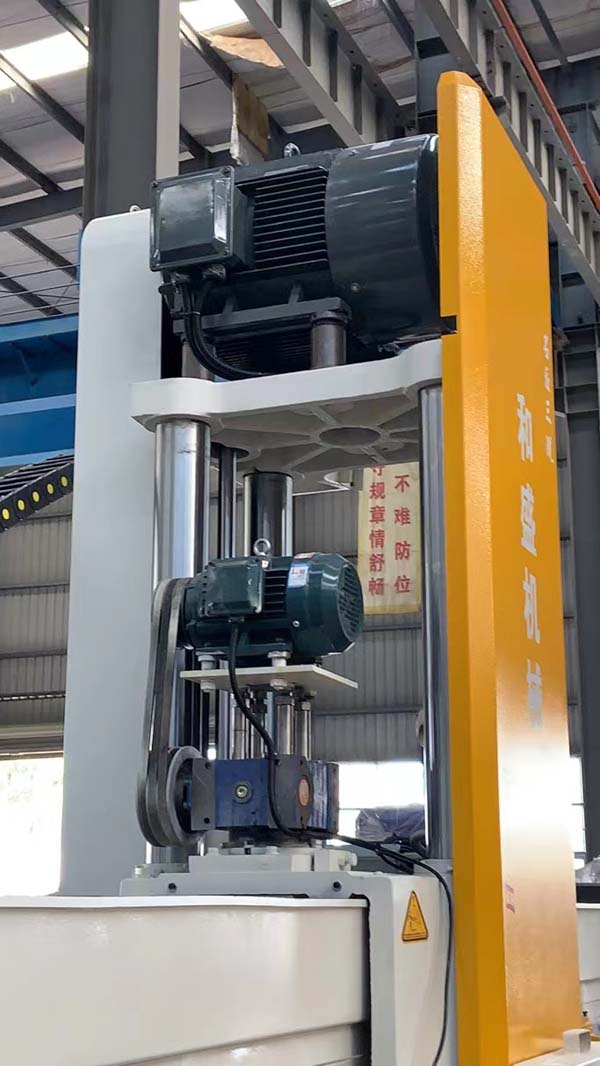

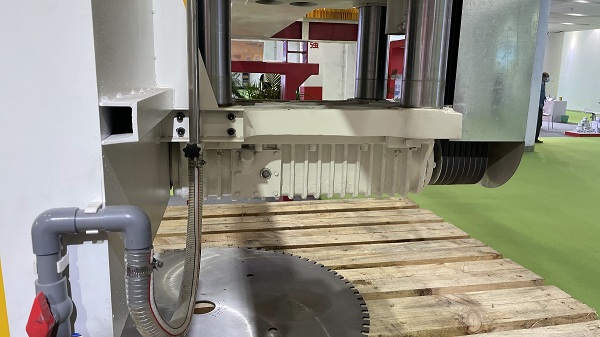

4:Adopt?main axle box heat dissipation structure with same like multi-blade stone cutting machine: High feeding quatity?with high production. this kind of spindle box?is sturdy and durable.

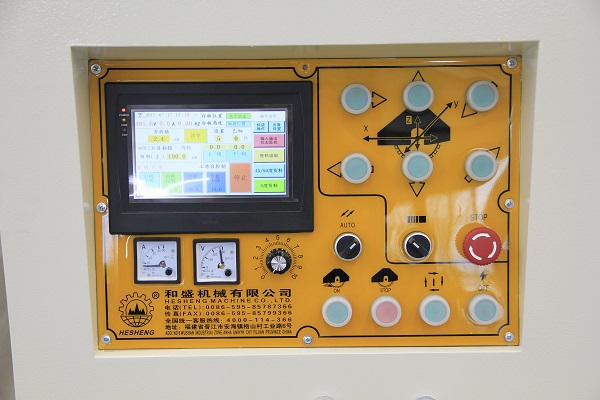

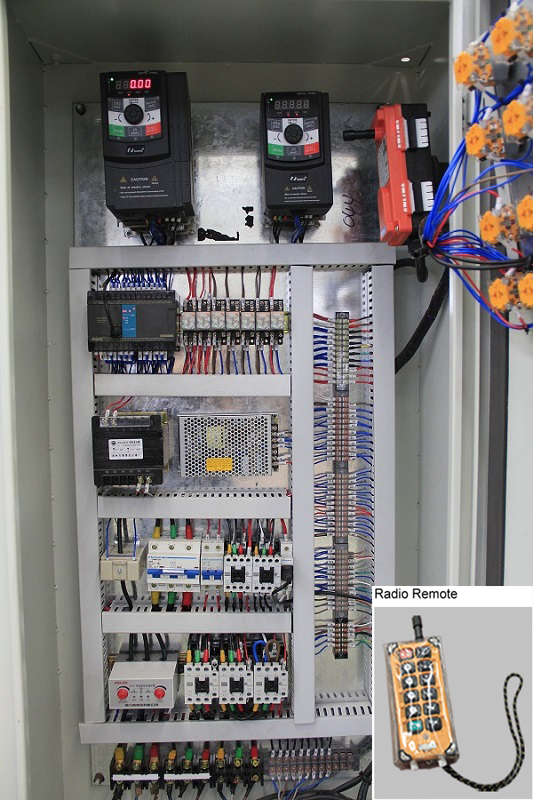

?5:Electrical control system are equipped with imported spare parts,for example,PLC( FATEK FROM TAIWAN)...?
??????????????????????????????????????????????????????????????????????????????????????????????????????
?
6：All hydraulic & Electric Components used are the optimized quality from domestic and abroad.
?
?
?
?
Cement Base(can match)

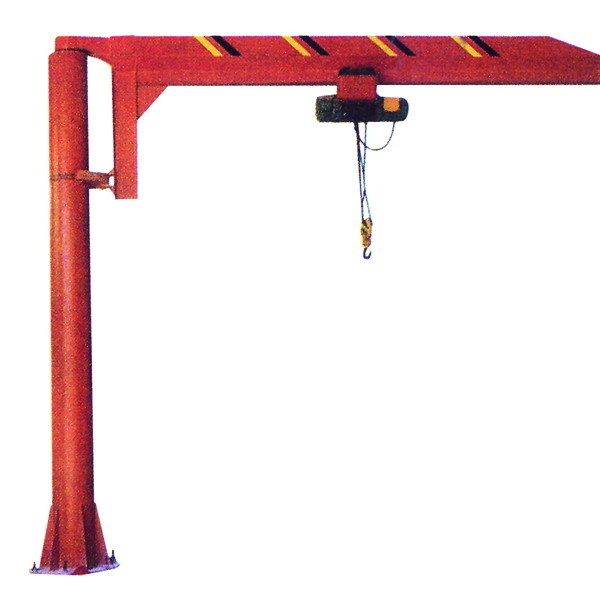

Ton Single-Beam Lifting machine(can match)
